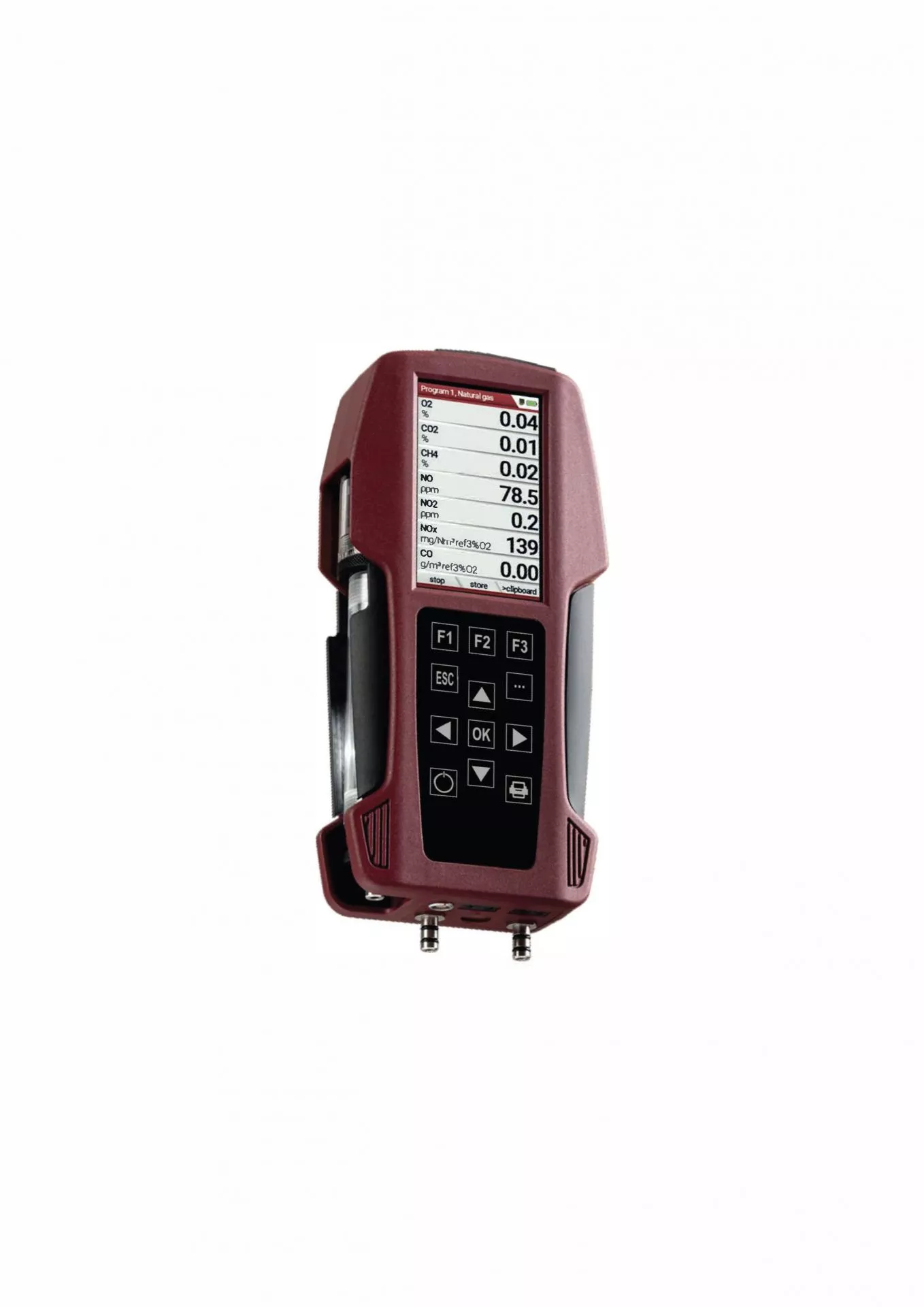

Optimax is a portable gas analyzer for the analysis of gas mixtures at biogas plants and sewage treatment plants, WWTP. In the standard set it can measure the concentration of up to 4 gases simultaneously as well as pressure. It can also be equipped with additional sensors. A large display allows all parameters to be displayed simultaneously and quickly read from a single screen. Measurement data is stored in log files and can be transferred without difficulty to a telepone or PC over blutooth or a mini-USB connection.

What’s included in the basic scope of biogas analzyer:
Sensors:
• O2 0 … 25 % (long‐life electrochemical cell)
• CH4 0 … 100 % (infrared dual gas bench)
• CO2 0 … 100 % (infrared dual gas bench)
• H2S 0 … 2,000ppm (5,000ppm overload) (electrochemical cell)
• Biogas pressure 0 … +/‐ 300 mbar (Biogas / duct pressure)

• DUAL Bluetooth for Android and Apple App
• Condensate separator with WATER STOP FILTER and Internal flow monitoring and alarm
• IRDA interface for high speed infrared thermal printer
• Mini‐USB interface for cable data transfer to PC
• SD card reader incl. activating software
• Internal data storage for up to 32000 measurements, with color data records visualization on display
• Battery and mains operation - high energy Li‐Ion battery, with 20 hours mains free operation
• Wall‐plug, universal grid power supply 90‐240Vac / 50‐60Hz for battery charging over the USB port
• Biogas sampling line Ø3x2mm Viton with 5m length and stainless steel instrument gas inlet port
• Standard ABS transport case

The light version of software is free of charge for Android and iOS. You can use it for typical field-service work like reading live values and basic data handling:

• Connect one analyzer at a time
• View live measurement data
• Record and store live measurements (up to 1 hour per session)
• Manage a small database of up to 15 customers / sites
• Transfer measurement data from the analyzer to the PC
• Basic measurement protocol handling (without PDF export)

The full version of the software can be installed on PC for Windows 10 and higher as a one-time licence. Main functions:

• download measurement data from the analyzer
• view and analyze results on a PC
• archive measurement records
• export reports to Excel / CSV / PDF
• configure analyzer settings
• prepare measurement reports

OPTIONS (not included):

• The full software version € 300,00
• AUX universal auxiliary port to connect extra sensors € 185,00
• Sensor H2S 5,000 ppm - overload 10,000 ppm € 1200,00
• Sensor for Temperature (IR) "IR400" (contactless infrared) € 240,00
• Pressure reducing unit (for high pressure site biogas sampling, e.g. Before CHP engines) € 80,00
• Gas flow velocity sensor (using a PITOT Tube) € 460,00

Consumables (not included):

• Service & cleaning set with water stop filter € 180,00
• Spare part set (O-Rings, Filter, Condensate show glass) € 150,00
• Replaceable filter elements for condensate separator € 20,00
