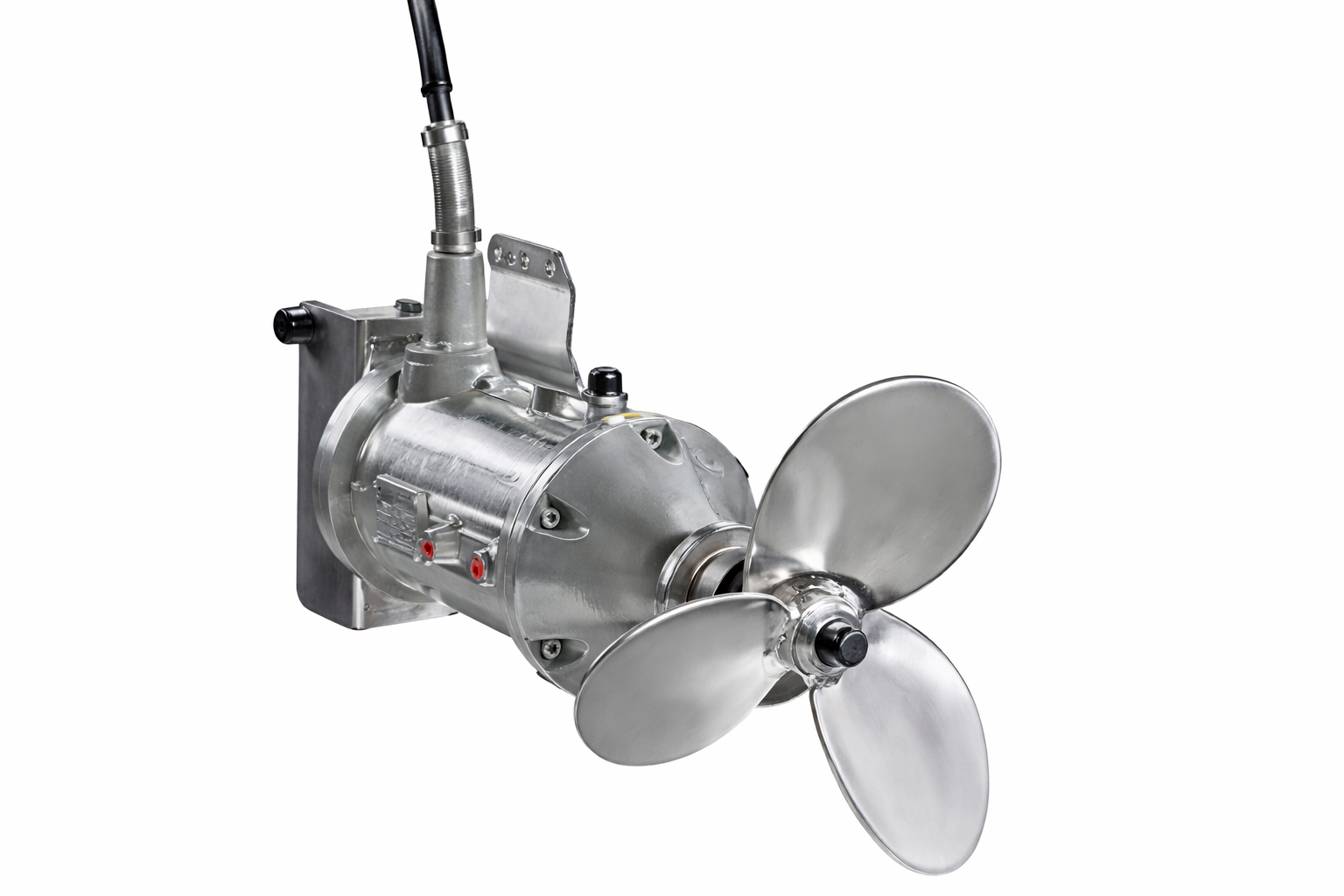

This is a compact, direct-drive submersible agitator for small tanks where the solids content is upto 4%. The propeller speed corresponds to the engine speed. It features a self-cleaning, rust-free propeller and a sealing system consisting of two
mechanical mechanical seals.

APPLICATIONS
Filtrate tanks
Selector tanks
Anoxic and anaerobic tanks
Equalization tanks

PROPELLER SPEED
1000 RPM

MATERIALS
Motor housing and oil chamber: Cast iron EN-GJL-250
Propeller: Stainless steel W1.4301
Protective collar: Plastic PE-HD 1000
Bolt: Acid-resistant steel A4
Gasket set: Mechanical seals: Silicon carbide/Silicon carbide
Oil type: 15W-40
Vario HDX (when equipped with seal monitoring)
Motor type: 3-phase AC motor
Rated voltage: 400 V
Minimum permissible operating voltage: 360 V
Rated frequency: 50 Hz
Suitable for frequency converter operation: Yes
Protection rating: IP 68
Protection class: F
ATEX classification: II 2 G Ex d c IIB T4 Gb

POD-I 1.1 kW-1000 rpm ms112, IE2 1 piece
POD-I propeller
Acid-resistant rope, max. 4 m, certified according to EN 10204
Suspension bracket, stainless steel POP-I/POD/B-I ms112
Sliding bracket, stainless steel, POD/B-I ms 112
Guide tube, stainless steel with pin, max. 4 m
Floor stand, acid-resistant
Fixing bracket, stainless steel
Wall mount, stainless steel, wall thickness
Swivel device, stainless steel profile
