Submersible mixer 1,5 kW

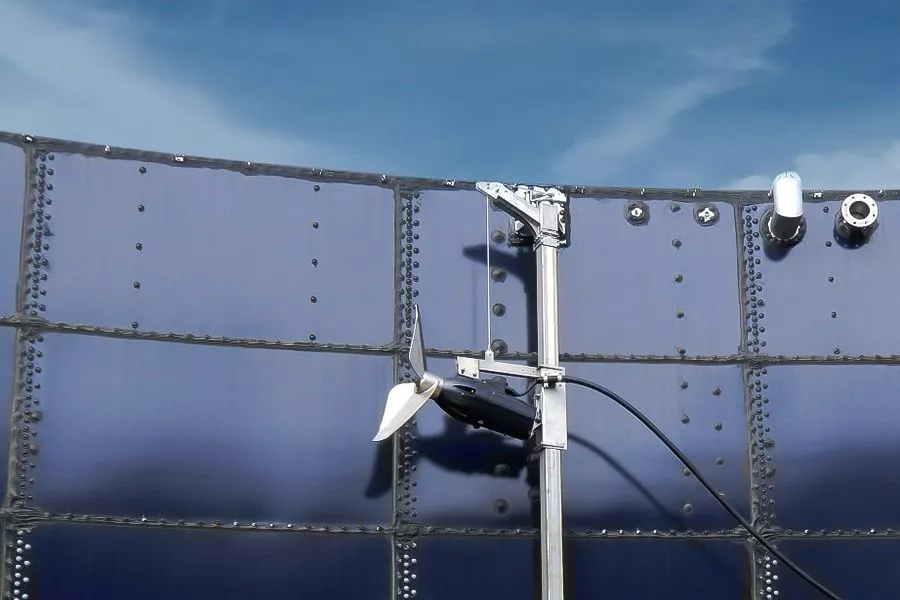

Submersible mixers are used in biogas plants, urban and industrial wastewater treatment, industrial processes and agriculture. In biogas plants, they are used for mixing substrates or filtrate in reactors, in preliminary tanks and filtrate tanks. They are mounted on a special mast, along which they can be raised or lowered using a winch in order to adjust the height of the submersible mixer. They are sometimes used in fermenters or post-digesters for breaking up the crust. Suitable for low viscosity substrates with a dry matter content of up to 11%.

Submersible mixer with nominal power 1,5 kW provides circulation power 1320 m³/h. The motors of the mixers are available in efficiency classes IE2 (high efficiency) and IE3 (premium efficiency). The motor and controller are connected via a common waterproof cable which is resistant to aggressive media such as substrate on biogas plants. The agitators can be operated via direct connection, star-delta activation, softstart or frequency inverters, depending on the performance and application. It has optimized propeller with better hydraulics for providing high thrust values with a low power consumption.

Technical Details
Features
Complete set

Nominal power:

1,5 kW

Nominal current:

3,45 A

Circulation power:

1320 m³/h

Propeller speed:

221 rpm

Axial thrust:

560 N

Weight:

138 kg

Technical Details

Nominal power:

1,5 kW

Nominal current:

3,45 A

Circulation power:

1320 m³/h

Propeller speed:

221 rpm

Axial thrust:

560 N

Weight:

138 kg

Features

Improved propeller hydraulics

Complete set

Submersible mixer with power cable

Сertified according ATEX ZONE 1

Guide rail VKT 120 incl. bottom fixation, stainless steel 1.4571 (V4A), wall clearance 40 cm

Gas-tight adjusting device suitable for wall thickness 200–280 mm

Adjusting device for wall thickness 120–200 mm and steel tanks or 280–340 mm

Manual hoisting winch, galvanized steel with fibre rope

Leakage detection relais 230 V (for control cubicles of the plant)
