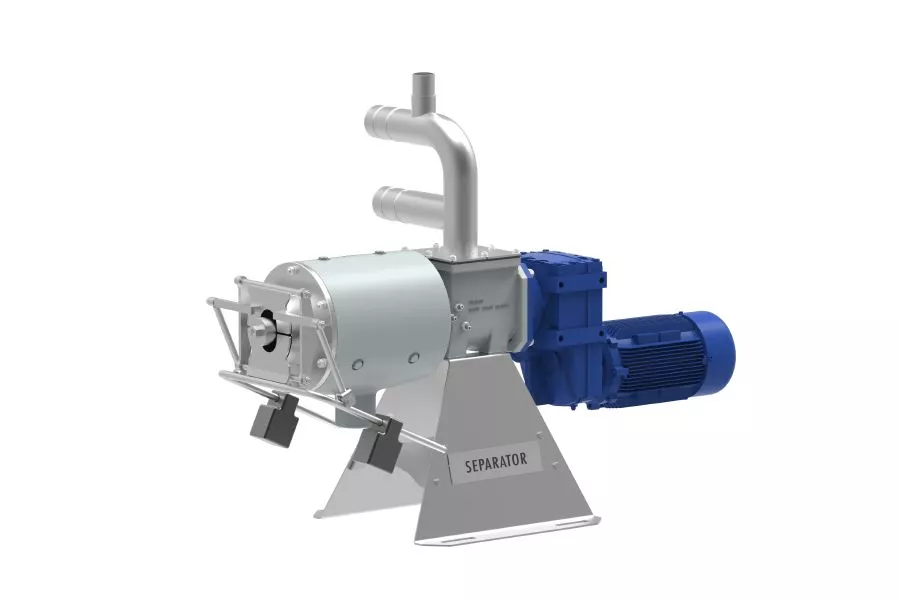

New Screw Separator ZSP-1100 11 kW
25.300 €
The ZSP-1100 screw separator handles large flows of liquid manure, digestate and organic slurries. Two full-length screening sections and an 11 kW drive provide a nominal throughput of 35–55 m³/h.
The ZSP-1100 has two 550 mm screening sections. Its larger working area supports high throughput at large livestock farms and biogas plants. Overall machine length is 2,635 mm.
Separation performance
Dry matter in the separated solid fraction is 25–30%. Nominal throughput is 35–55 m³/h. Flow and dewatering depend on the feed composition and solids content, the screen slot width and the counterweight settings. These parameters determine the balance between throughput and dewatering.
Operating principle
Premixed slurry enters the working chamber. The rotating screw moves the material along a cylindrical screen, allowing liquid to pass through its slots. Retained solids move towards the outlet, where they are compressed and dewatered before leaving as a separate stream.
Outlet resistance is adjusted using counterweighted arms. This mechanical adjustment allows the dewatering level to be set on site. An even supply of previously homogenised feed helps maintain stable operation.
Working components
The housing is carbon steel. Internal components and the screen are AISI 304 stainless steel. Screen diameter is 261 mm; screening section lengths are 2 × 550 mm. The installed screen has a slot width of 1.0 mm.
The stainless-steel screw has a wear-resistant working surface. Carbide and tungsten coatings are available as options. Replaceable screens allow worn elements to be renewed or a different slot width to be selected. Standard or reinforced screens are used to suit the application.
Applications
At biogas plants, the separator processes digestate after anaerobic digestion. The separated solids can be stored, composted or further processed into organic fertilisers. The liquid fraction is collected separately for subsequent use or treatment.
At livestock farms, the unit separates premixed liquid manure. Solids can be handled with a loader, while liquid can be pumped. Suitable sanitary treatment is required before using the solid fraction as bedding. The separator also handles suitable organic slurries from food processing.
Installation and maintenance
The support frame is offered separately. It positions the machine above the solids discharge area. Stairs provide maintenance access, and a roof protects the working platform from precipitation. A hot-dip galvanised frame is available for outdoor installations.
The control cabinet is offered separately. Its IP65 enclosure houses drive controls and protection against motor overload, phase supply faults and overheating. The cabinet is installed no more than 10 m from the machine. Access must be provided for cleaning, inspecting and replacing the screen and screw, together with unobstructed discharge of both fractions.
Technical characteristics
Features
Scope of supply
Version
Standard
Motor power
11 kW
Nominal throughput
35–55 m³/h
Dry matter in the solid fraction
25–30%
Screen diameter
261 mm
Screening section lengths
2 × 550 mm
Screen slot width
1.0 mm
Housing
Carbon steel
Internal components and screen
AISI 304 stainless steel
Separator dimensions, L × W × H
2635 × 910 × 1745 mm
Power supply
400 V / 50 Hz
